Wireless Voting System

Name: Wireless Voting System
Brand: Gonsin Conference Equipment Co., LTD.





Get A Quote

Desktop Wireless Voting Unit BJ-04-W

Wireless Voting Unit BJ-W5

Wireless Base Station Unit ZJ-W6

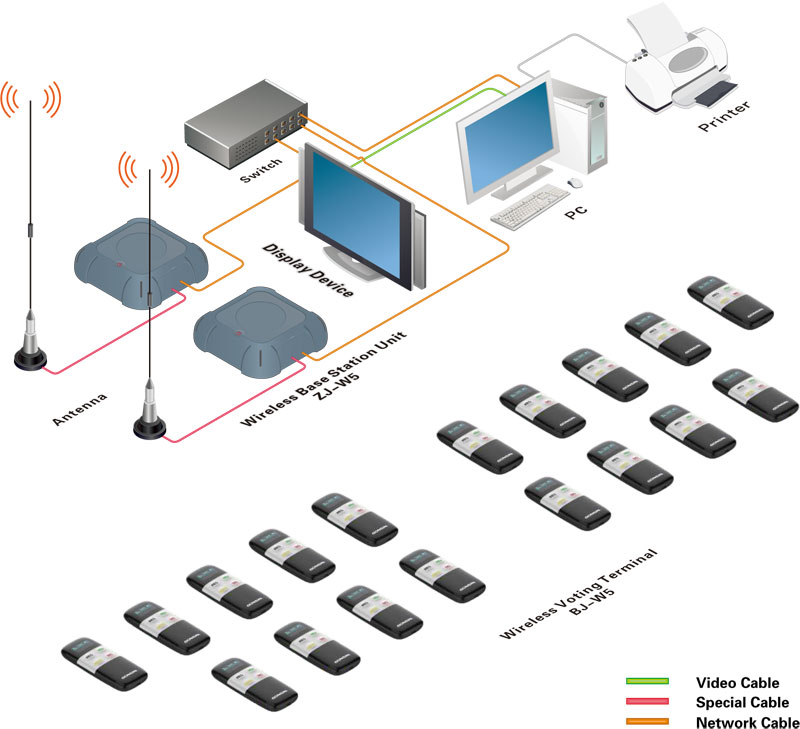

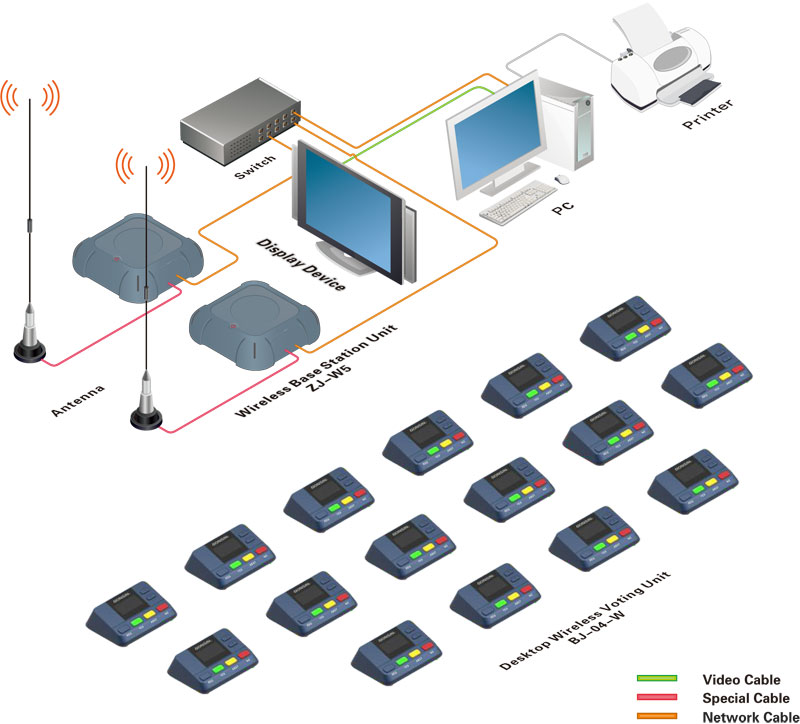

System Configuration

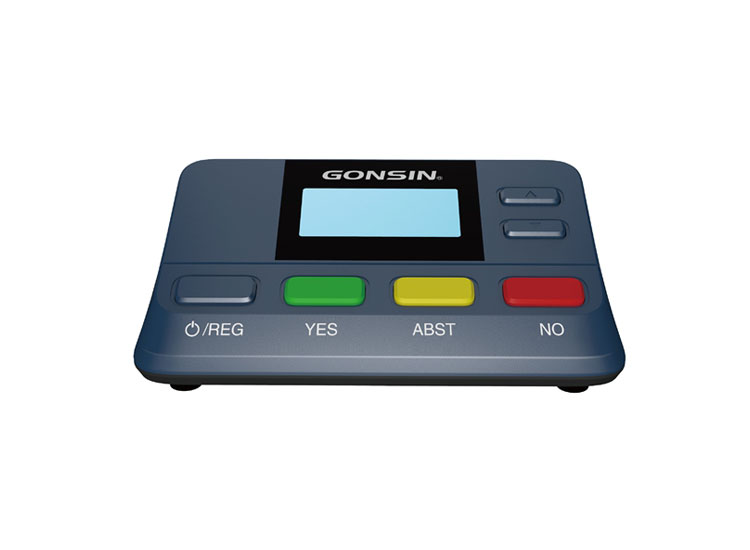

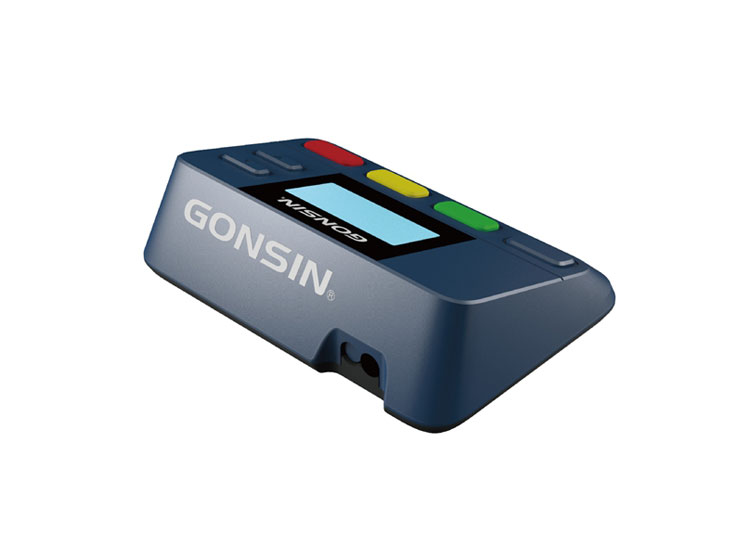

Desktop Wireless Voting Unit BJ-04-W

Features of Desktop Wireless Voting Unit BJ-04-W

Utilize wireless digital communication way
Unique wireless on-site environment online detection and frequency selection, ensure the system avoid any interference
Two registration ways, key pressing or inserting card
Software customized voting or evolution ways
LCD display screen, humanistic human-machine interaction
Automatic alarm when the system is faulty
Low power consumption, low emission power, comply with the global electrical design and communication design standard
Lithium battery or AAA battery, real-time detection of battery level, dynamic display, low battery alarm
Automatic memory of voting result when power cut off
Isolated touch switch, anti-30000V electrostatic interference
Secret hood( optional) to ensure the privacy
Unified shutdown by software
Keys have three colors, red, yellow, green, makes it impressive
Tilting silkscreen keys

Functions of Desktop Wireless Voting Unit BJ-04-W

Attendance Registration: inserting card, key-press, supplementary registration; late delegate can vote supplementally; count "number of supposed attendance", "number of real attendance", "number of absence"
Voting: delegates can vote for "Yes" "No" "Abstain" or the customized voting way by the software. Computer automatically collect statistic and display the result
Single voting and multiple voting
Effective first press-key or effective last press-key
Election: elect one or more from candidates with the support of "single-candidate election" and "multi-candidate election"
Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", "Abstain", or the customized evaluation way by software
Grading: From 0-100 points, the initial score is 80 points, press "Yes" to increase points and “No" to reduce points
LCD Dynamic display of the voting process( such as "registration please, registration done, voting please, voted, please return” and etc)
Registration/ Yes/Abstain/No tilting silkscreen keys. have three impressive colors, red, yellow, green
Multiple encryption and err correction during the data transmission
Unified shutdown by software or automatic shutdown when it has not received signal for 4 hours, ensure the voting process by avoiding human misoperation

Technical Specification of Desktop Wireless Voting Unit BJ-04-W

Frequency range	300~800MHz(immune to mobile signal jammer)
Channel transponder	24 selectable channels
Registration methods	Press-key or insert card
Communication method	10mW wireless communication with confidential agreement + multi-verification
Effective communicating distance	100m
Sensitivity	-121dBm
LCD screen	128×64 dot-matrix display
Battery display	Real-time display, low-level alarm
Battery specification	Lithium battery or three AAA batteries
Service time	39 hours(Lithium battery)
Standby time	120 hours
Dimensions(L×W×H)	153mm×106mm×46mm
Net weight	0.5Kg(excluding batteries)
Working temperature	0~45°C
Storage temperature	-20~50°C

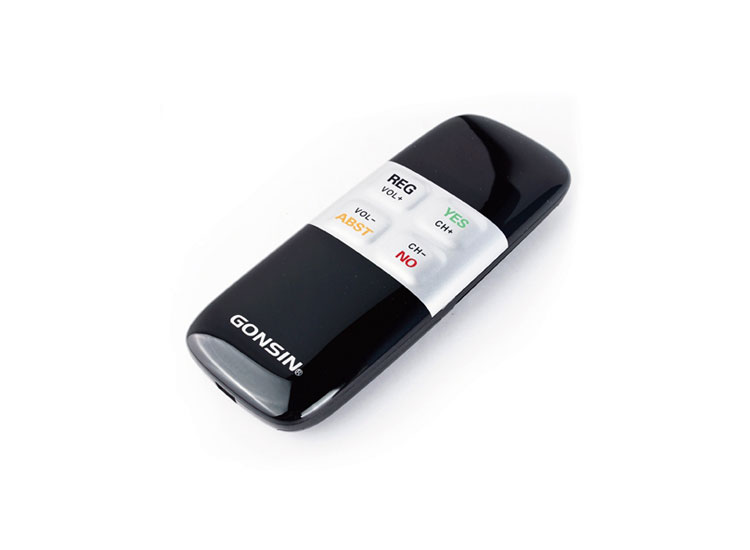

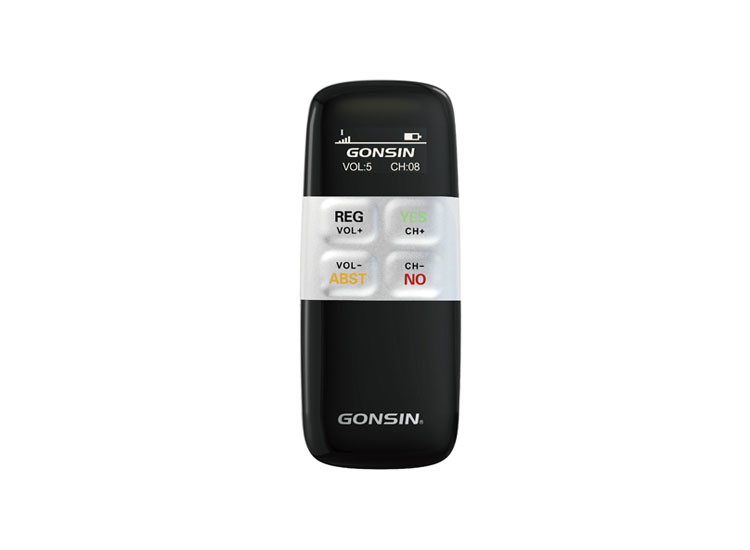

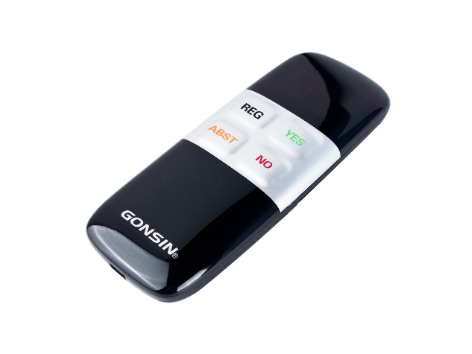

Wireless Voting Unit BJ-W5

Features of Wireless Voting Unit BJ-W5

Unique wireless on-site online environment detection and frequency selection, ensure the system avoids any interference
Two registration ways, button pressing or inserting a card
Software-customized wireless conference voting system
OLED display screen, humanistic human-machine interaction
Automatic alarm when the system is faulty
Low power consumption, low emission power, comply with the global electrical design and communication design standard
Lithium battery or AAA battery, real-time detection of battery level, dynamic display, low battery alarm
Automatic memory of voting result when power cut off
Isolated touch switch, anti-30000V electrostatic interference
Anti-violation and it can normally operate after being dropped from 2 meters high
Software can turn off all voting units together
Immune to mobile signal jammer
Utilize wireless digital communication way

Functions of Wireless Voting Unit BJ-W5

Attendance Registration: inserting card, key-press, supplementary registration; late delegate can vote supplementally; count "number of supposed attendance", "number of real attendance", "number of absences"
Voting: delegates can vote for "Yes" "No" "Abstain" or the customized voting way by the software. Computer automatically collect statistic and display the result
Single voting and multiple voting
Effective first press-key or effective last press-key
Election: elect one or more from candidates with the support of "single-candidate election" and "multi-candidate election"
Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", “Abstain", or the customized evaluation way by software
Grading: From 0-100 points, the initial score is 80 points, press "Yes" to increase points and “No" to reduce poins
OLED Dynamic display of the voting process ( such as "registration please, registration done, voting please, voted, please return" and etc)
Multiple encryption and err correction during the data transmission
Unified shutdown by software or automatic shutdown when it has not received signal for 4 hours, ensure the voting process by avoiding human misoperation

Technical Specifications of Wireless Voting Unit BJ-W5

Frequency range	300~800MHz
Channel transponder	24 selectable channels
Registration methods	Press-button or insert card
Communication method	10mW wireless communication with confidential agreement + multi-verification
Stable communicating distance	100m
Sensitivity	-121dBm
LCD screen	35*17.5MM
	128×64 dot-matrix display
	OLED display
Battery display	Real-time display, low-level alarm
Battery specification	Lithium battery or three AAA batteries
Service time	>26 hours( lithium battery )
Package	Aluminum carry case
Dimensions	1506322mm
Net weight	0.13Kg(excluding batteries)
operating temperature	0~45℃
Storage temperature	-20~50℃

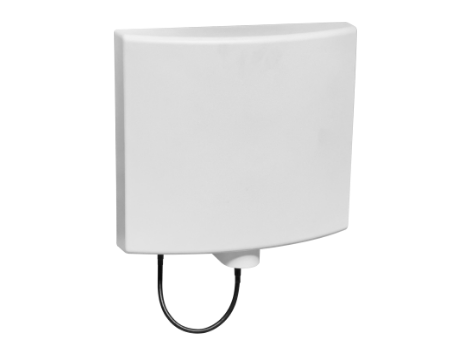

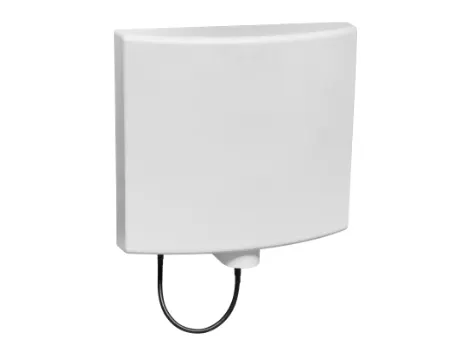

Wireless Base Station Unit ZJ-W6


Functions of Base Station Unit ZJ-W6

Black metal chassis, built-in high-performance directional flat plate antenna, integrated design, can be selected different specifications of the antenna. Supports wall hanging, floor support and other installation methods, with mounting holes, easy installation
Network port connection. Supports both standard PoE power supply and DC power supply. Tape status indicator
A single wireless voting master can control 200 wireless voting machines, and the system supports 4096 people voting at the same time
Support 100 meters transceiver range coverage, communication frequency band 300~800MHz, not affected by light, infrared, mobile phone signal blocker, can be used stably in WLAN environment
Select frequency hopping technology, built-in wireless frequency scanning software, support 24 frequency points mutual rotation, can choose a clean frequency point work
With a unique serial number, the conference system can automatically or manually assign ids to system devices
Adopt unique automatic tracking bidirectional measurement full check and diversified comprehensive calculation
technology with check to ensure accurate calculation results
In the process of information transmission, multi-level error correction and encryption scrambler processing are carried out to ensure data security
Supports dual-system hot backup. The system supports grouping of multiple wireless voting master computers with the same communication frequency. During a meeting, the system communicates with the main control computers in the same group. If one of the main control computers in the group fails, the system communicates with the other main control computer to ensure that the meeting runs smoothly
Support unified device shutdown to avoid affecting the voting due to participants' misoperation to close the voting device
Support the chairman screen synchronous management control function, to achieve the management and control of the conference process on the mobile terminal
Support the intelligent conference management platform to realize the interconnection of conference data.
Support remote voting, support multiple conference rooms, multiple regions for unified voting. You can view voting data and export data

Technical Specification of Wireless Voting Central Controller ZJ-W6

Installation	Wall hanging/floor support installation
Frequency range	300～800MHz
Number of Frequency points	24 channels interchange
Way of communication	10mW wireless communication
Communication distance	100m
Sensitivity	-121dBm
Connection method	Network cable (support standard PoE power supply)
Single base station capacity	200 units
Max system capacity	4096 units
Antenna parameters	Standard directional plate antenna (gain: 6 dBi, horizontal plane: 85°, vertical plane: 120°), optional small antenna (H120mm), medium antenna (H880mm)
Dimensions(WHD)	with coaxial line: 320mm×250mm×85mm without coaxial line: 240mm×250mm×85mm
Power	DC 12V
Weight	1.16Kg
Maximum power consumption	<15W
Operating temperature	0~45°C
Storage temperature	-20~50°C
