Dual 10-inch Line Array Series Speaker

10 Inch Line Array Speakers
10 Inch Line Array
10 Inch Line Array Speakers
10 Inch Line Array
Get A Quote
Description
Technical Specifications

Description of Dual 10-inch Line Array Series Speaker

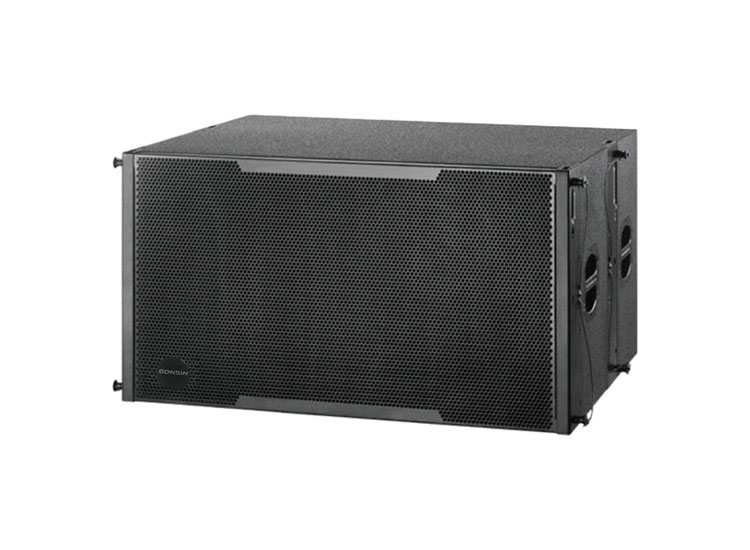

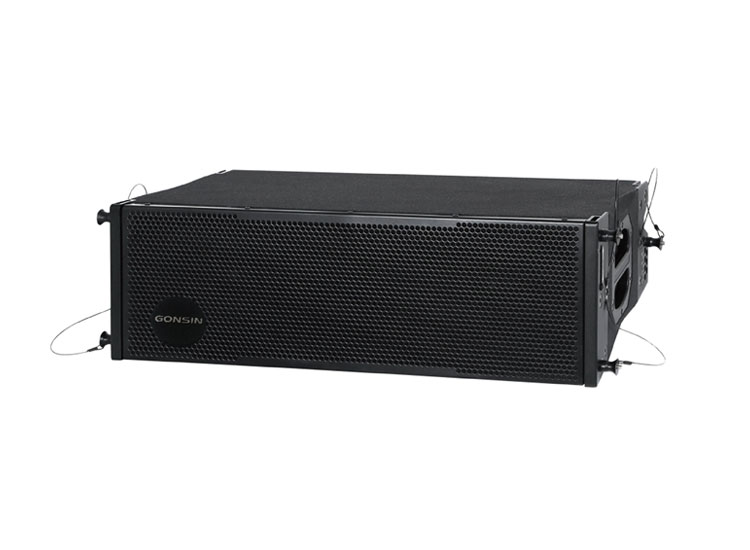

GX-SP2010DL-Z line array speaker is a medium-sized two-way crossover system, providing a bandwidth of 55Hz-20KHz. The box speaker array is fitted with two British top-level 34 mm voice coil HF drivers and two 10-inch LF drivers with stronger penetrating power and higher sound pressure level. The design is elaborate with superb appearance. GX-SP2018SSBC-Z is a subwoofer designed specifically for using with the GX-SP2010DL-Z line array speaker. The bass-reflex design makes the bass more abundant and powerful. With GX-SP2010DL-Z, it makes a high sound pressure level, clear sounds and a controllable full-range response range.

Technical Specifications of Dual 10-inch Line Array Series Speaker

ModelGX-SP2010DL-ZGX-SP2018SSBC-Z
Impedance16Ω8Ω
Frequency range50Hz~20KHz(-10dB)38Hz~350Hz(-10dB)
MAX SPL135dB(EIAJ)128dB
Power(RMS)500W/ 2000W(PEAK)600W/ 2400W(PEAK)
Horizontal coverage angle120°/
Vertical coverage angle10°/
MID LF unit2X12 Mid Low, 3"High power voice coil Ceramic alloy magnet, Waterproof paper cone1*18"Subwoofer, 4" High power voice coil Ceramic alloy magnet, Waterproof paper cone
HF unit2X1"Titanium film, Neodymium magnet, 1.75"tube/
Sensitivity(1m/1W)101dB/
Hanger/InstallationHanger for line array, two handles36mm stand holder, hanger for line array, two handles
Cabinet18mm birch plywood, black spray paint, metal mesh
Signal connectorTwo parallel socket of SPEAKON
Product Dimensions(W*D*H)900*450*285mm1010*835*550mm
Package Dimensions(W*D*H)1010*540*375mm1010*790*613mm
Net weight36.5Kg45Kg
Gross weight38.3Kg53Kg

View dual 12-inch line array speakers for larger-scale professional audio applications.
