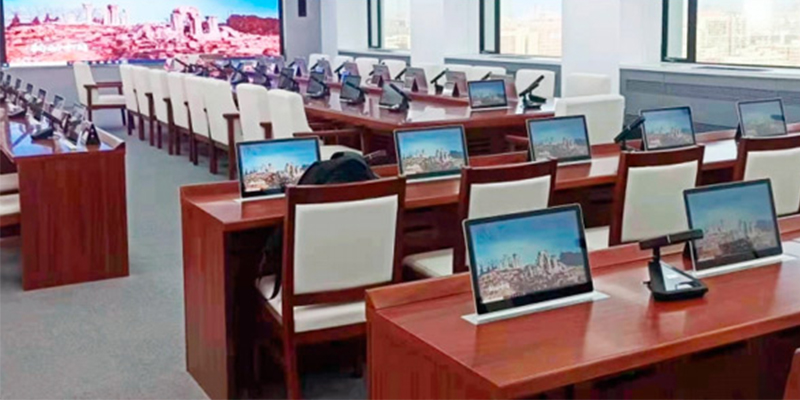

10000N Series Seamless Compatible Wired and Wireless Conference System

• With wired and wireless seamless compatible technology, wired conference terminals and wireless conference terminals can be mixed into the same conference server for unified management, data intercommunication, and meet the needs of different users

• Multiple backup mechanisms ensure the safe, stable and reliable operation of the system, and ensure that the meeting goes on smoothly without being interrupted, satisfying the stringent requirements of high-end meetings for equipment

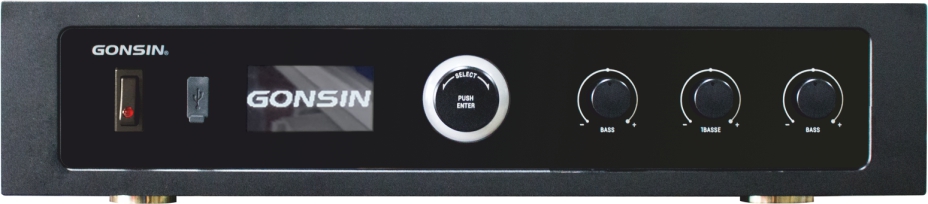

      1. Support dual-server hot stand-by function. When the current server doesn't work, it will automatically switch to the stand-by server

      2. Support dual-server hot stand-by function of the management software. When the current computer doesn't work, it will automatically switch to the stand-by computer

      3. With a dual-chain backup function of the conference terminal. When the main chain fails, it can be switched to the backup chain for continued use (configured with Rectangular Columnar Short Microphone)

• Support the application of splitting and merging of the conference room, with 4 channels of audio grouping output, can be split into an independent system using in multiple meeting rooms, or can be used at the same time as the whole system, which is convenient and flexible

• The wired conference terminal supports star connection, hand-in-hand connection and mixed connection, and all devices are connected by network cables, which is convenient for construction and management

• The wireless conference terminal supports 2.4G/5.2G/5.8G triple-band communication to ensure system stability

• With Automatic Speech Recognition System, it can realize the transcription of speech into text by role, and generate meeting minutes, effectively reducing the workload of meeting affairs and improving efficiency

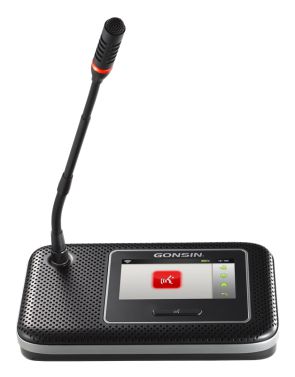

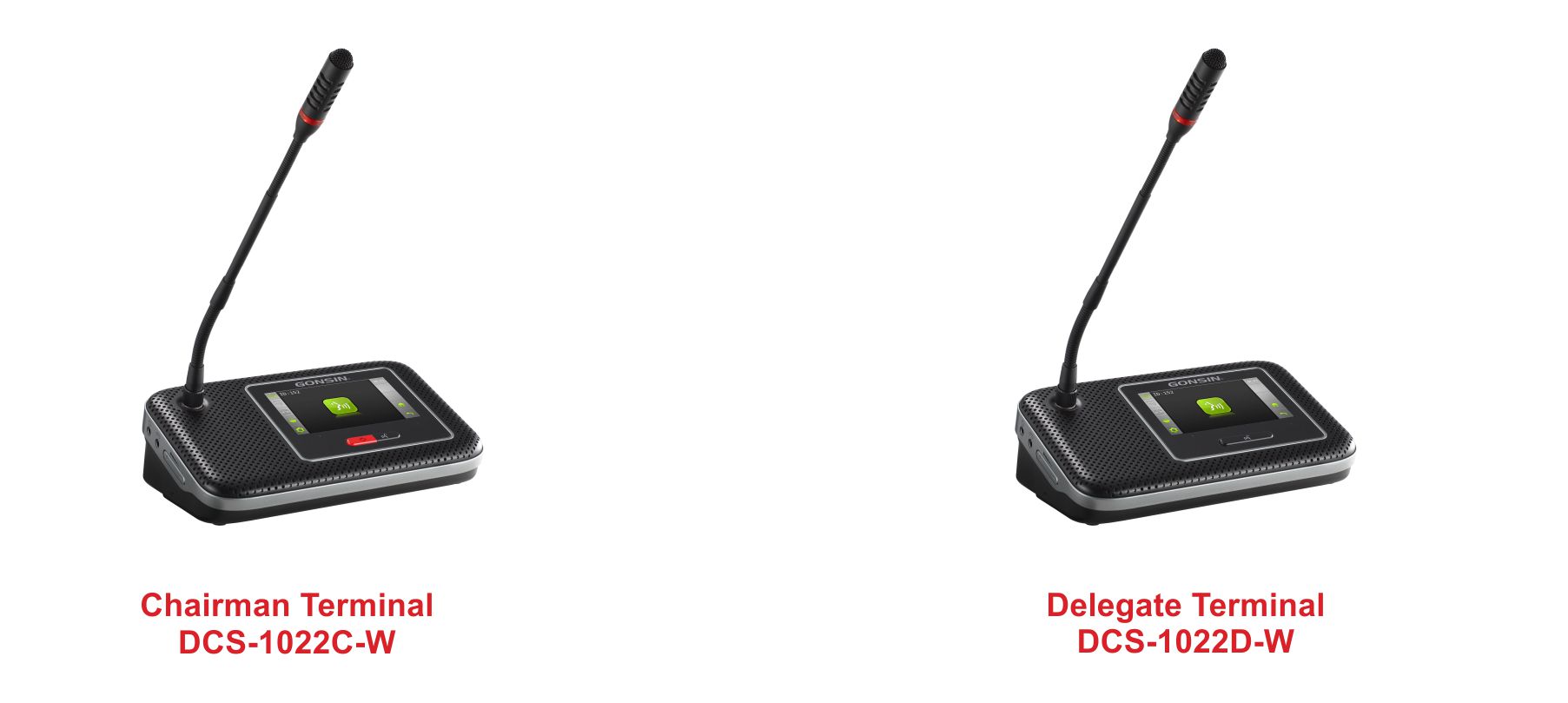

Functions of Terminal DCS-1022C-W/DCS-1022D-W

Chairman Terminal

(Wireless,Discussion,Gooseneck,Touchscreen,Card Slot,Speaker,Li-ion Battery)

Delegate Terminal

(Wireless,Discussion,Gooseneck,Touchscreen,Card Slot,Speaker,Li-ion Battery)

• The terminal adopts a pluggable dual hose gooseneck microphone, available in various lengths, with status indicator.

• With 4.3" touch screen display, support interface customization. Provide reusable physical speaking buttons, short press to turn on/off the microphone, long press to turn on the terminal.

• The base adopts a square geometric design. Provide 1 way 3.5mm headphone jack and 1 way 3.5mm recording jack, with adjustable volume. The use of removable lithium batteries, continuous speech time ( turn on the monitor ) ≥ 8.5 hours, standby time ( under the state of the lowest power consumption ) ≥ 14 hours

• Provide 1 way DC charging interface, support 12V2A DC charging. Supports removable batteries that can be placed in a charging box for recharging. The terminal has a built-in power-down detection and protection circuit with functions of power monitoring, energy-saving control, low-voltage warning, and automatic shutdown protection (automatic shutdown protection for three consecutive minutes without signal).

• The terminal adopts WiFi wireless communication technology, which conforms to IEEE 802.11n network standard and supports 2.4GHz/5.2GHz/5.8GHz tri-band communication. It adopts 128-bit AES encryption technology and supports WEP/WPA/WPA2 wireless security technology to ensure the privacy of the meeting and avoid eavesdropping and malicious interference.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With speech control function, it can control the microphone on and off through the touch screen (specified models).

• With monitoring function. Built-in speaker with adjustable volume. When the microphone is turned on, the speaker of this machine is automatically turned off to prevent the sound from whistling back. Built-in card reader module, supporting contact IC card recognition.

• The terminal offers a service call function, allowing users to tap on icons such as tea, paper, pen, or help on the touch screen to request services from the system backend (it needs to be used with the call service software).

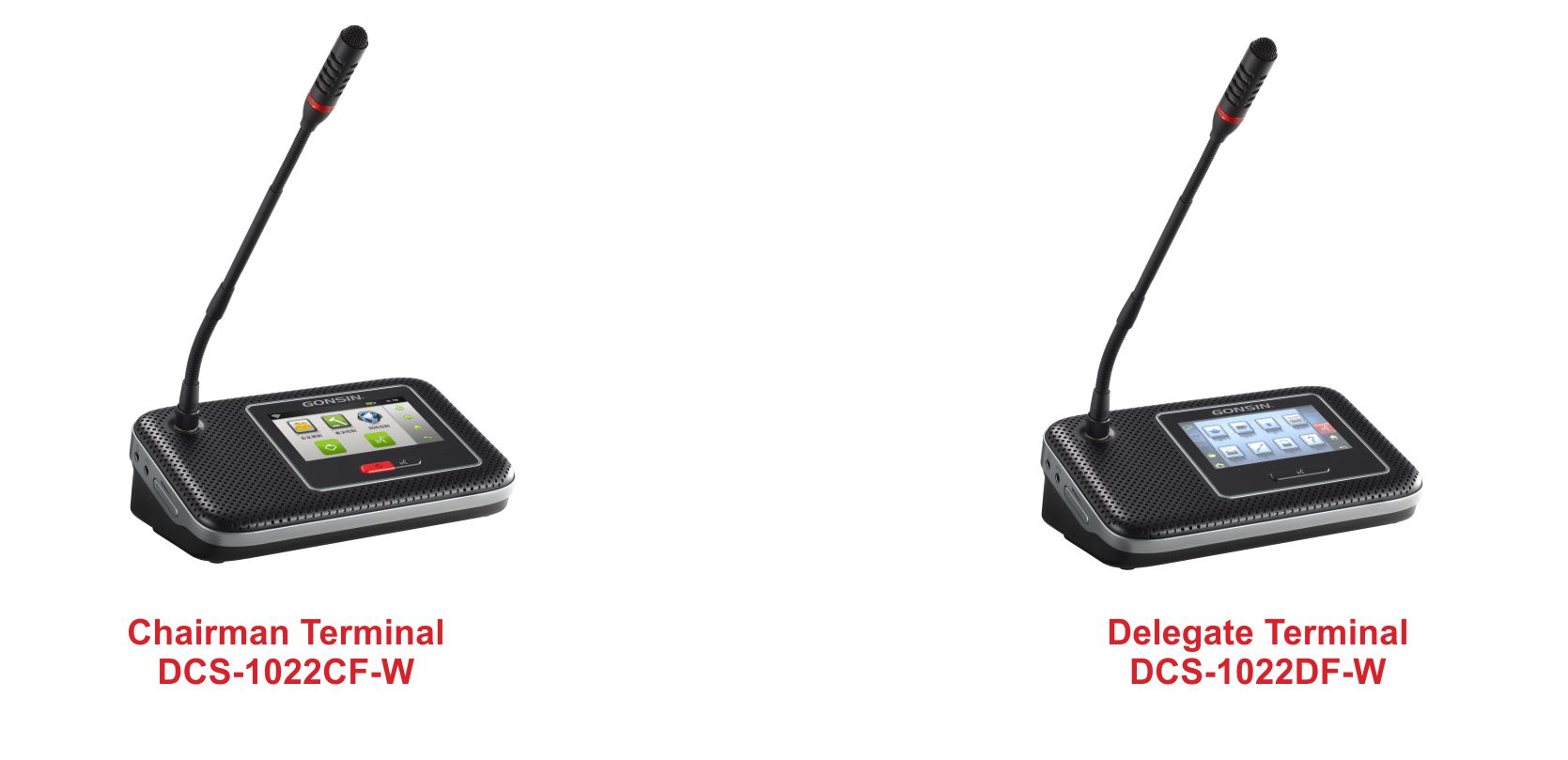

Functions of Terminal DCS-1022CF-W/DCS-1022DF-W

Chairman Terminal

(Wireless,Discussion,Voting,Interpretation,Gooseneck,Card Slot,Speaker,Touchscreen,Li-ion Battery)

Delegate Terminal

(Wireless,Discussion,Voting,Interpretation,Gooseneck,Card Slot,Speaker,Touchscreen,Li-ion Battery)

• The terminal adopts a pluggable dual hose gooseneck microphone, available in various lengths, with status indicator.

• With 4.3" touch screen display, support interface customization. Provide reusable physical speaking buttons, short press to turn on/off the microphone, long press to turn on the terminal.

• The base adopts a square geometric design. Provide 1 way 3.5mm headphone jack and 1 way 3.5mm recording jack, with adjustable volume. The use of removable lithium batteries, continuous speech time ( turn on the monitor ) ≥ 8.5 hours, standby time ( under the state of the lowest power consumption ) ≥ 14 hours

• Provide 1 way DC charging interface, support 12V2A DC charging. Supports removable batteries that can be placed in a charging box for recharging. The terminal has a built-in power-down detection and protection circuit with functions of power monitoring, energy-saving control, low-voltage warning, and automatic shutdown protection (automatic shutdown protection for three consecutive minutes without signal).

• The terminal adopts WiFi wireless communication technology, which conforms to IEEE 802.11n network standard and supports 2.4GHz/5.2GHz/5.8GHz tri-band communication. It adopts 128-bit AES encryption technology and supports WEP/WPA/WPA2 wireless security technology to ensure the privacy of the meeting and avoid eavesdropping and malicious interference.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With speech control function, it can control the microphone on and off through the touch screen (specified models).

• With monitoring function. Built-in speaker with adjustable volume. When the microphone is turned on, the speaker of this machine is automatically turned off to prevent the sound from whistling back. Built-in card reader module, supporting contact IC card recognition.

• With simultaneous interpretation channel selector, the audio frequency response of the simultaneous interpretation channel can be up to 20Hz～20kHz, which can realize the function of 6-channel simultaneous interpretation (including the floor channel).

• Supports quick voting without the need for pre-entering topics and voting options. Voting can be initiated instantly. When used with software, it can provide various registration and voting functions.

• The terminal offers a service call function, allowing users to tap on icons such as tea, paper, pen, or help on the touch screen to request services from the system backend (it needs to be used with the call service software).

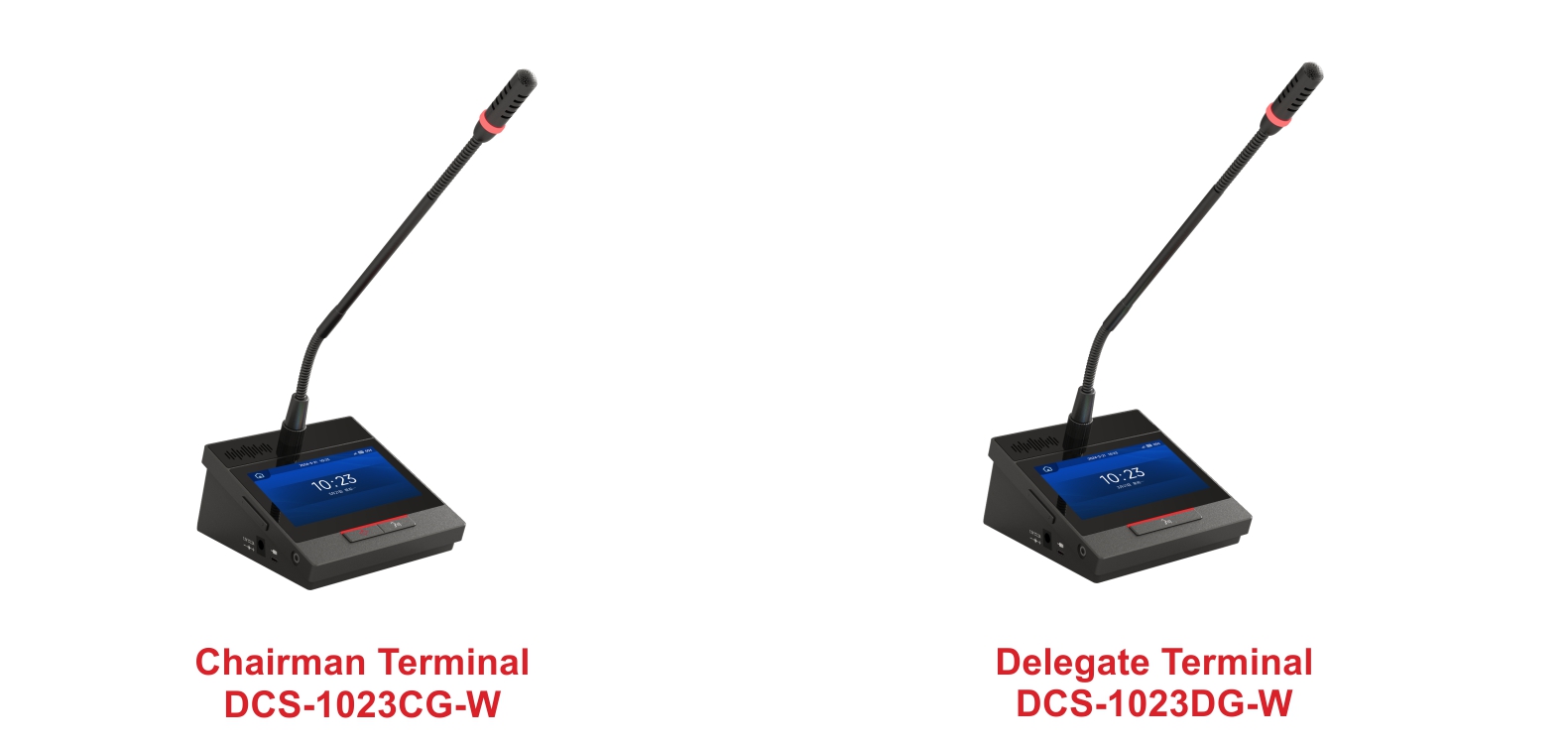

Functions of Terminal DCS-1023CG-W/DCS-1023DG-W

Chairman Terminal

(Wireless,Discussion, Gooseneck,Speaker,Touchscreen,Li-ion Battery)

Delegate Terminal

(Wireless,Discussion, Gooseneck,Speaker,Touchscreen,Li-ion Battery)

• The terminal adopts a pluggable dual hose gooseneck microphone, available in various lengths, with status indicator.

• With 4.3" touch screen display, support interface customization. Provide reusable physical speaking buttons, short press to turn on/off the microphone, long press to turn on the terminal. With key indicator, support dual-color display.

• The base adopts a square geometric design and can be used with a nameplate to display the name. Provide 1 way 3.5mm headphone jack with adjustable volume. Built-in rechargeable lithium battery, continuous use time (speaking status) ≥ 17 hours.

• Provide 1 way DC charging interface, support 12V2A DC charging. Charge with charging box. The terminal has a built-in power-down detection and protection circuit with functions of power monitoring, energy-saving control, low-voltage warning, and automatic shutdown protection (automatic shutdown protection for three consecutive minutes without signal).

• The terminal adopts WiFi wireless communication technology, which conforms to IEEE 802.11n network standard and supports 2.4GHz/5.2GHz/5.8GHz tri-band communication. It adopts 128-bit AES encryption technology and supports WEP/WPA/WPA2 wireless security technology to ensure the privacy of the meeting and avoid eavesdropping and malicious interference.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With speech control function, it can control the microphone on and off through the touch screen (specified models).

• The terminal offers a service call function, allowing users to tap on icons such as tea, paper, pen, or help on the touch screen to request services from the system backend  (it needs to be used with the call service software).

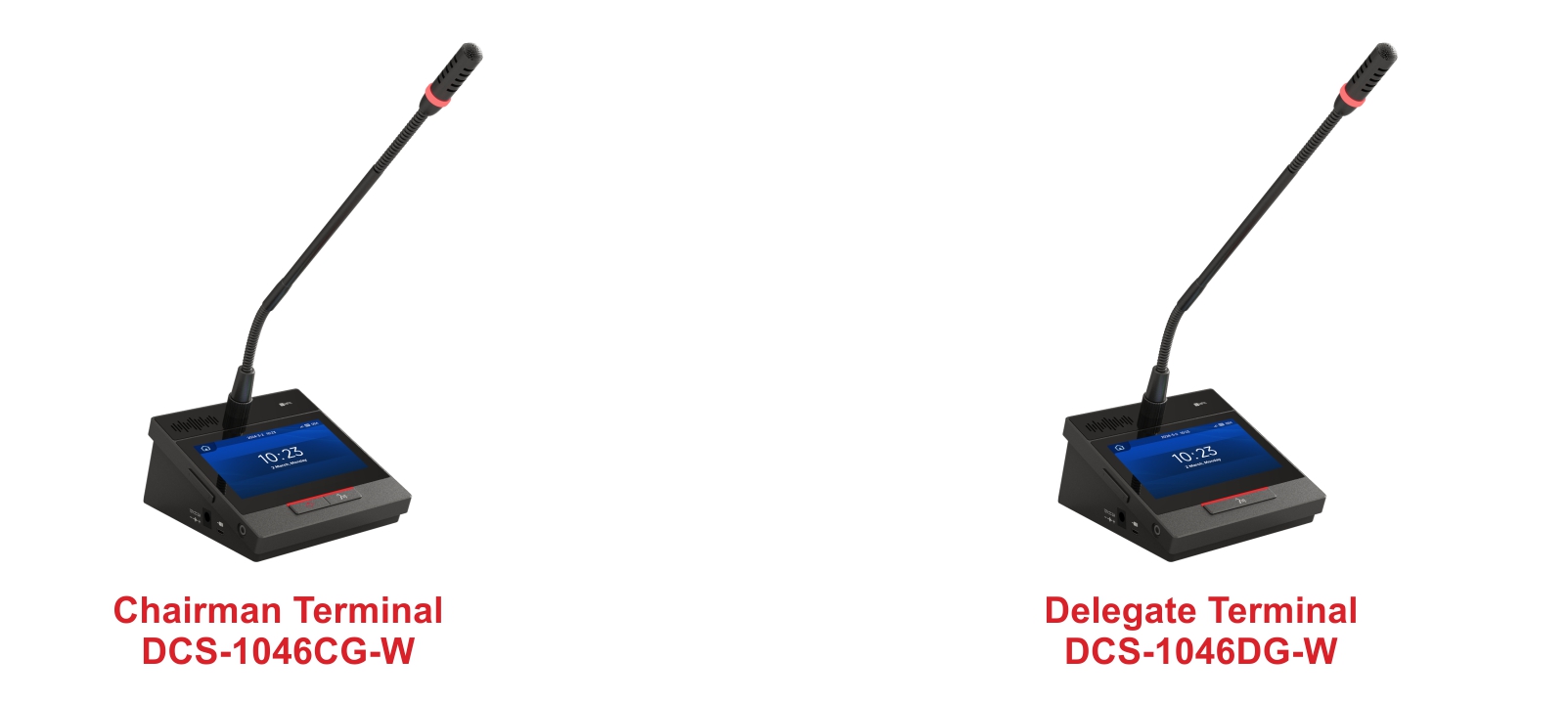

Functions of Terminal DCS-1046CG-W/DCS-1046DG-W

Chairman Terminal

(Wireless,Discussion,Voting,Interpretation,Gooseneck,Speaker,Touchscreen,NFC,Li-ion Battery)

Delegate Terminal

(Wireless,Discussion,Voting,Interpretation,Gooseneck,Speaker,Touchscreen,NFC,Li-ion Battery)

• The terminal adopts a pluggable dual hose gooseneck microphone, available in various lengths, with status indicator.

• With 4.3" touch screen display, support interface customization. Provide reusable physical speaking buttons, short press to turn on/off the microphone, long press to turn on the terminal. With key indicator, support dual-color display.

• The base adopts a square geometric design and can be used with a nameplate to display the name. Provide 1 way 3.5mm headphone jack with adjustable volume. Built-in rechargeable lithium battery, continuous use time (speaking status) ≥ 17 hours.

• Provide 1 way DC charging interface, support 12V2A DC charging. Charge with charging box. The terminal has a built-in power-down detection and protection circuit with functions of power monitoring, energy-saving control, low-voltage warning, and automatic shutdown protection (automatic shutdown protection for three consecutive minutes without signal).

• The terminal adopts WiFi wireless communication technology, which conforms to IEEE 802.11n network standard and supports 2.4GHz/5.2GHz/5.8GHz tri-band communication. It adopts 128-bit AES encryption technology and supports WEP/WPA/WPA2 wireless security technology to ensure the privacy of the meeting and avoid eavesdropping and malicious interference.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With speech control function, it can control the microphone on and off through the touch screen (specified models).

• With monitoring function. Built-in speaker with adjustable volume. When the microphone is turned on, the speaker of this machine is automatically turned off to prevent the sound from whistling back. Built-in NFC module, support with NFC devices, NFC card for close range wireless communication.

• With simultaneous interpretation channel selector, the audio frequency response of the simultaneous interpretation channel can be up to 20Hz~20kHz, which can realize the function of 32-channel simultaneous interpretation (including the floor channel).

• Supports quick voting without the need for pre-entering topics and voting options. Voting can be initiated instantly. When used with software, it can provide various registration and voting functions.

• The terminal provides a variety of standby interfaces, including clock, flag, pattern, name and so on. Support meeting content display, displaying current meeting information. Support QR code display, can scan the code to get the information file.

• The terminal offers a service call function, allowing users to tap on icons such as tea, paper, pen, or help on the touch screen to request services from the system backend  (it needs to be used with the call service software).

Functions of Terminal DCS-2043C-G/DCS-2043D-G

Chairman Terminal

(Cat5e,Discussion,Gooseneck,OLED,Dual 2W Speakers,Card Slot)

Delegate Terminal

(Cat5e,Discussion,Gooseneck,OLED,Dual 2W Speakers,Card Slot)

• The terminal adopts a pluggable dual hose gooseneck microphone, available in various lengths, with status indicator.

• With OLED screen to display terminal information, support clock display, can automatically synchronize the system time. Provide physical speaking buttons, with three-color LED indicator to show the microphone working status.

• The base adopts a triangular geometric design, cast from integrated zinc alloy.Provide 1 way 3.5mm microphone jack with adjustable volume. Provide 2-way terminal interface, support hand-in-hand, star, hybrid three kinds of connection mode, support line hot-plug. The output port has an anti-loosening design and supports bottom line output, with the option for hidden or non-hidden installation.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With monitoring function. Built-in speaker with adjustable volume. When the microphone is activated, the speaker of microphone automatically mutes to prevent feedback and howling. Built-in card reader module, supporting contact IC card recognition.

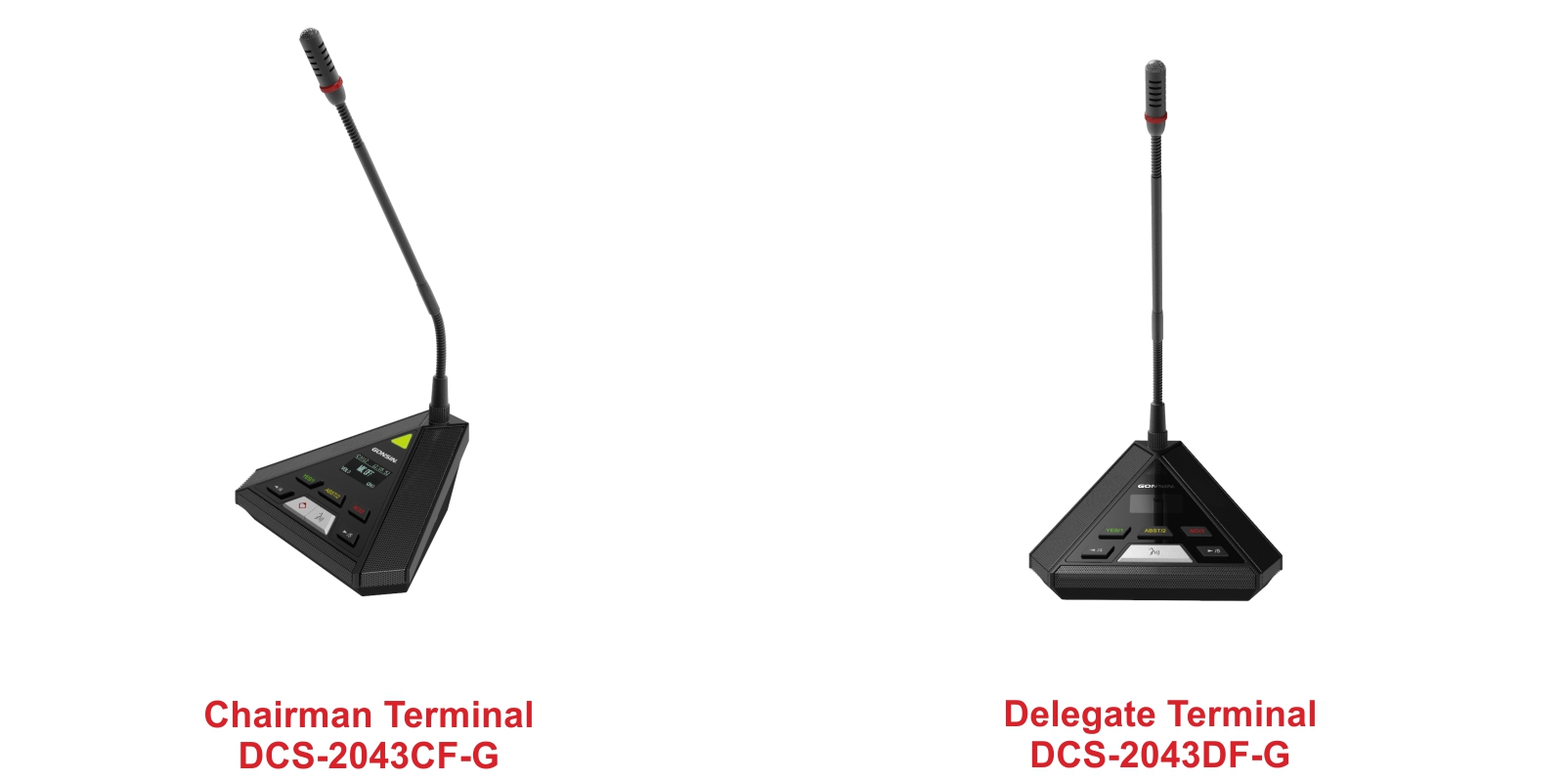

Functions of Terminal DCS-2043CF-G/DCS-2043DF-G

Chairman Terminal

(Cat5e,Discussion,Voting,Interpretation,Gooseneck,OLED,Dual 2W Speakers,Card Slot)

Delegate Terminal

(Cat5e,Discussion,Voting,Interpretation,Gooseneck,OLED,Dual 2W Speakers,Card Slot)

• The terminal adopts a pluggable dual hose gooseneck microphone, available in various lengths, with status indicator.

• With OLED screen to display terminal information, support clock display, can automatically synchronize the system time. Provide physical speaking buttons, with three-color LED indicator to show the microphone working status.

• The base adopts a triangular geometric design, cast from integrated zinc alloy. Provide 1 way 3.5mm microphone jack with adjustable volume. Provide 2-way terminal interface, support hand-in-hand, star, hybrid three kinds of connection mode, support line hot-plug. The output port has an anti-loosening design and supports bottom line output, with the option for hidden or non-hidden installation.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With monitoring function. Built-in speaker with adjustable volume. When the microphone is activated, the speaker of microphone  automatically mutes to prevent feedback and howling. Built-in card reader module, supporting contact IC card recognition.

• With simultaneous interpretation channel selector, the audio frequency response of the simultaneous interpretation channel can be up to 20Hz～20kHz, which can realize the function of 32-channel simultaneous interpretation (including the floor channel).

• When used with software, it can provide various registration and voting functions.

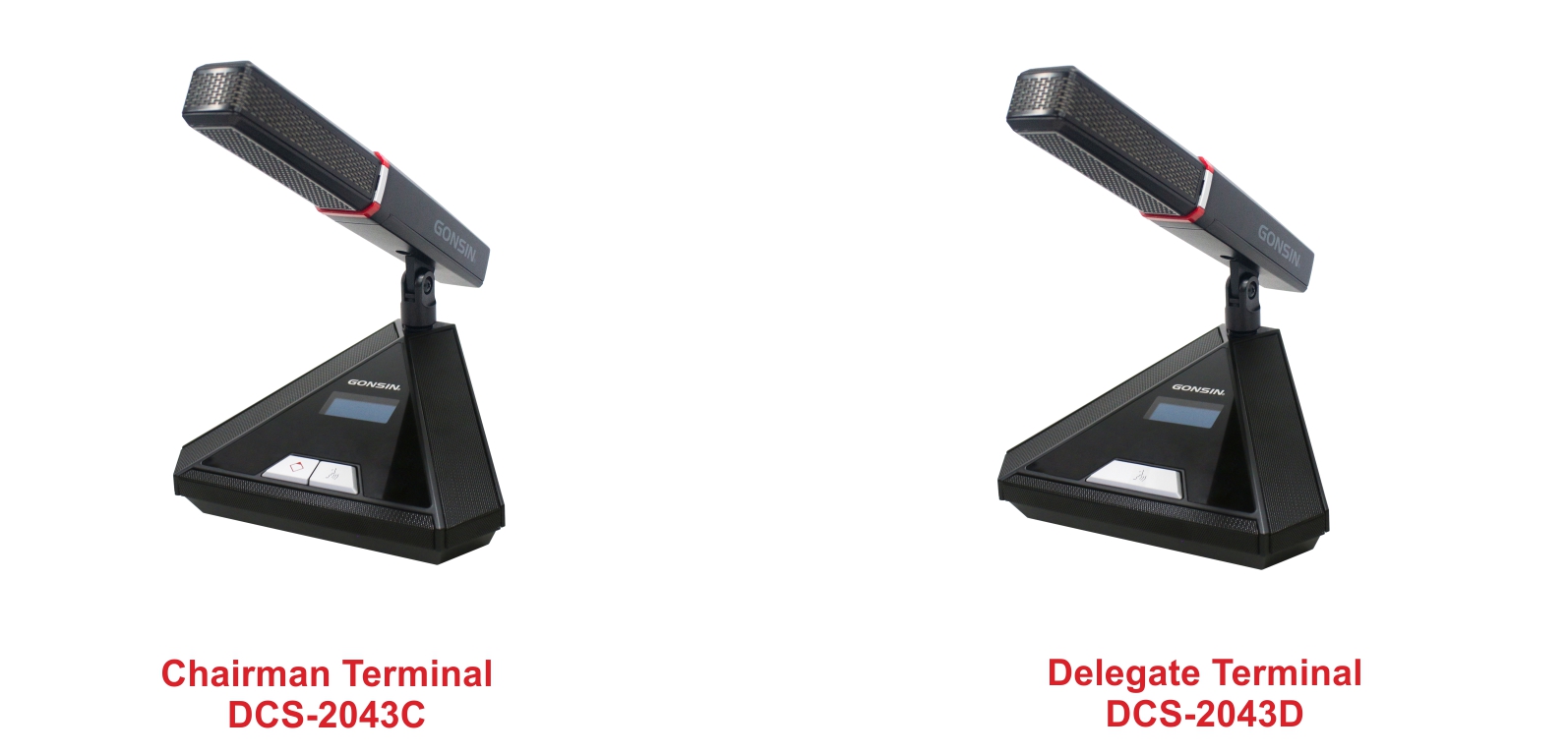

Functions of Terminal DCS-2043C/DCS-2043D

Chairman Terminal

(Cat5e,Discussion,Short-stem with XLR,OLED,Dual 2W Speakers,Card Slot)

Delegate Terminal

(Cat5e,Discussion,Short-stem with XLR,OLED,Dual 2W Speakers,Card Slot)

• The terminal adopts metal material with a fixed rectangular columnar short microphone, with dual-color status indicator, supporting status color setting. With a maximum adjustable tilt angle of 80°and built-in windproof cotton and a cavity pickup structure.


• The rectangular columnar short microphone has a digital and analog dual backup function. The microphone is built-in two sets of independent audio circuits, providing a network cable interface and 48V phantom power supply interface, supporting the digital system and analog system work and output at the same time. When one set of system failure will not affect the other set of system audio output.

• With OLED screen to display terminal information, support clock display, can automatically synchronize the system time. Provide physical speaking buttons, with three-color LED indicator to show the microphone working status.

• The base adopts a triangular geometric design, cast from integrated zinc alloy.Provide 1 way 3.5mm microphone jack with adjustable volume. Provide 2-way terminal interface, support hand-in-hand, star, hybrid three kinds of connection mode, support line hot-plug. The output port has an anti-loosening design and supports bottom line output, with the option for hidden or non-hidden installation.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With monitoring function. Built-in speaker with adjustable volume. When the microphone is activated, the speaker of microphone  automatically mutes to prevent feedback and howling. Built-in card reader module, supporting contact IC card recognition.

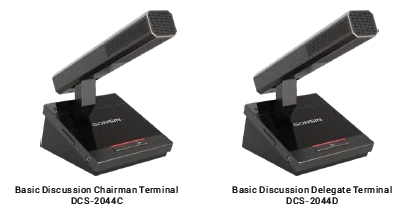

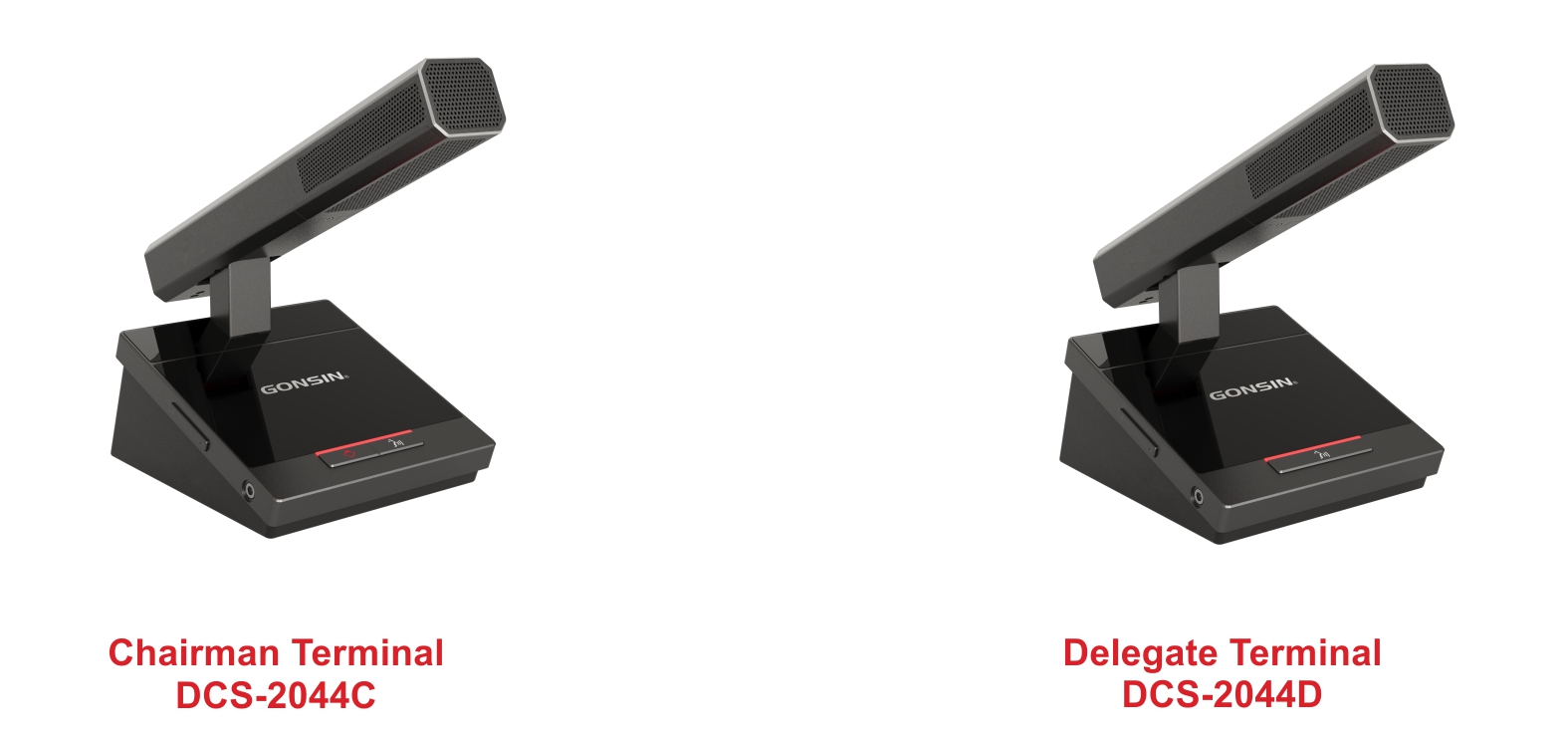

Functions of Terminal DCS-2044C/DCS-2044D

Chairman Terminal

(Cat5e,Discussion,Short-stem with XLR,Speaker)

Delegate Terminal

(Cat5e,Discussion,Short-stem with XLR,Speaker)

• The terminal adopts metal material with a fixed rectangular columnar short microphone, with dual-color status indicator, supporting status color setting. With a maximum adjustable tilt angle of 55°and built-in windproof cotton and a cavity pickup structure.

• The rectangular columnar short microphone has a digital and analog dual backup function. The microphone is built-in two sets of independent audio circuits, providing a network cable interface and 48V phantom power supply interface, supporting the digital system and analog system work and output at the same time. When one set of system failure will not affect the other set of system audio output.

• Base model: Equipped with fingerprint-resistant frosted lenses. Provides physical speaking buttons with button indicator lights, supporting dual-color display.

• The base adopts a square geometric design, cast from integrated zinc alloy, and can be used with nameplate to display name. Provide 1 way 3.5mm headphone jack with adjustable volume. Provide 2-way terminal interface, support hand-in-hand, star, hybrid three kinds of connection mode, support line hot-plug. The output port has an anti-loosening design and supports bottom line output, with the option for hidden or non-hidden installation.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With speech control function, it can control the microphone on and off through the touch screen (specified models).

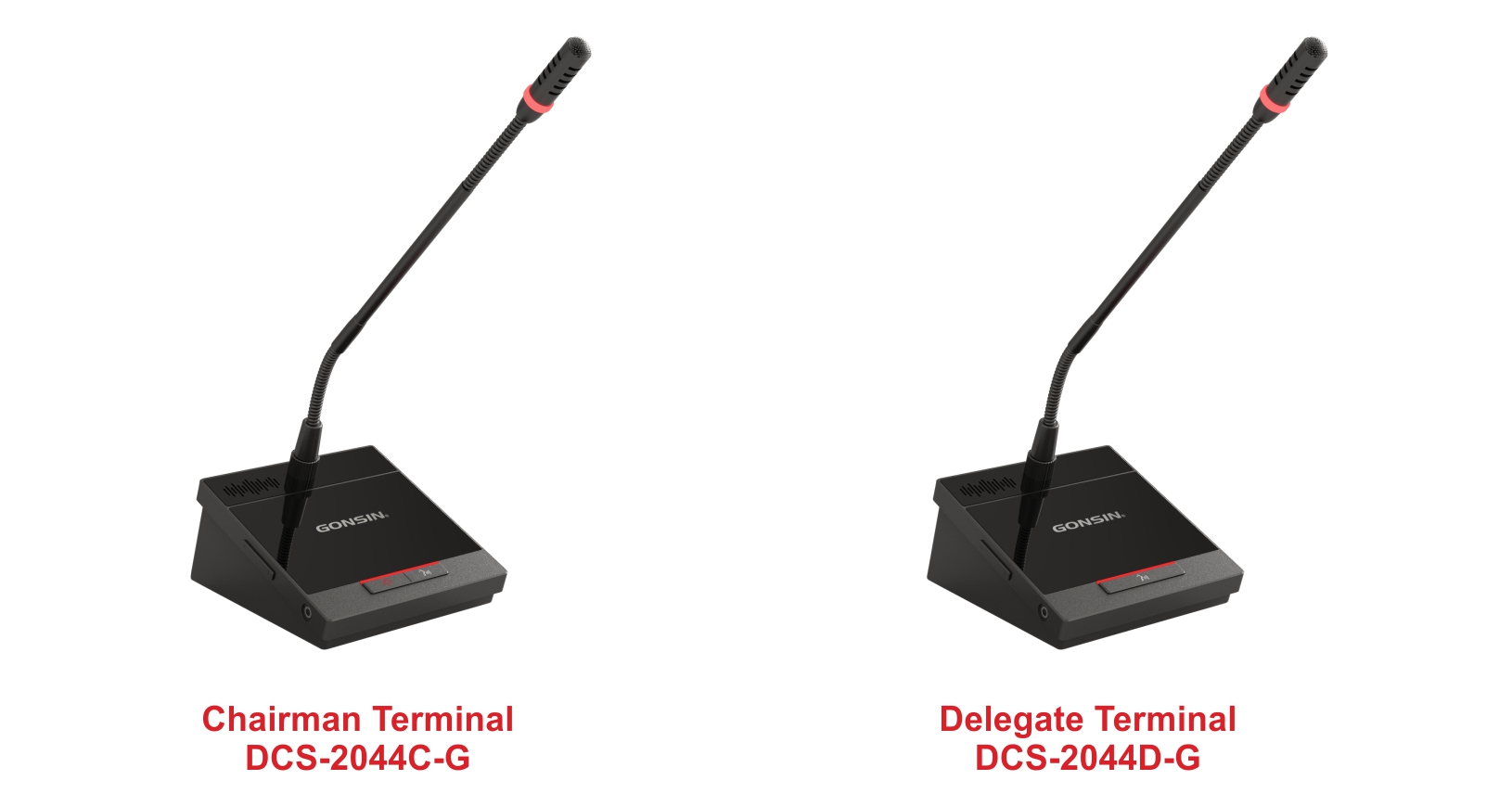

Functions of Terminal DCS-2044C-G/DCS-2044D-G

Chairman Terminal

(Cat5e,Discussion,Gooseneck,Speaker)

Delegate Terminal

(Cat5e,Discussion,Gooseneck,Speaker)

• The terminal adopts a pluggable dual hose gooseneck microphone, available in various lengths, with status indicator.

• Base model: Equipped with fingerprint-resistant frosted lenses. Provides physical speaking buttons with button indicator lights, supporting dual-color display.

• The base adopts a square geometric design, cast from integrated zinc alloy, and can be used with nameplate to display name. Provide 1 way 3.5mm headphone jack with adjustable volume. Provide 2-way terminal interface, support hand-in-hand, star, hybrid three kinds of connection mode, support line hot-plug. The output port has an anti-loosening design and supports bottom line output, with the option for hidden or non-hidden installation.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With speech control function, it can control the microphone on and off through the touch screen (specified models).

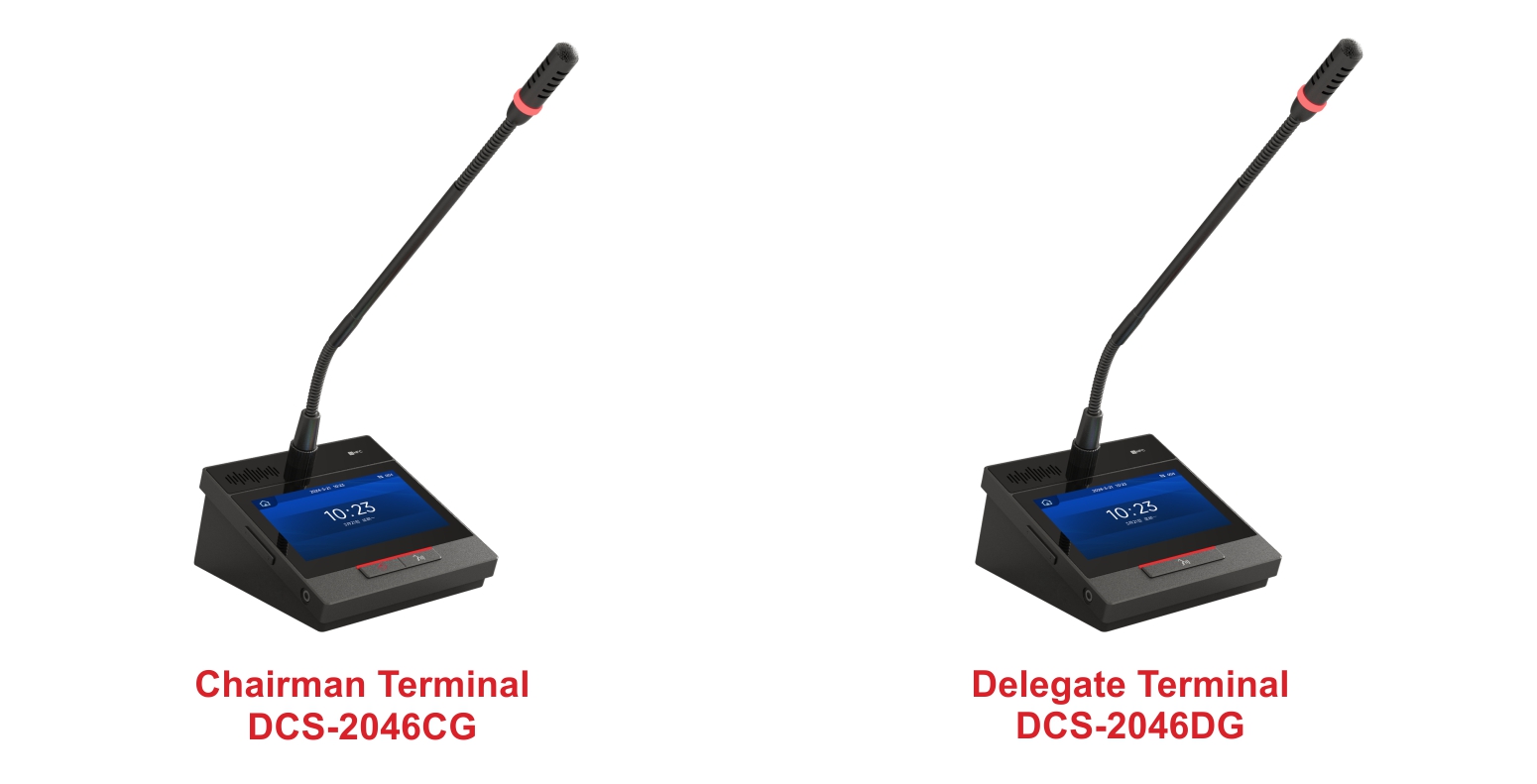

Functions of Terminal DCS-2046CG/DCS-2046DG

Chairman Terminal

(Cat5e,Discussion,Voting,Interpretation,Gooseneck,Speaker,Touchscreen,NFC)

Delegate Terminal

(Cat5e,Discussion,Voting,Interpretation,Gooseneck,Speaker,Touchscreen,NFC)

• The terminal adopts a pluggable dual hose gooseneck microphone, available in various lengths, with status indicator.

• With 4.3" touch screen display. Provides physical speaking keys with key indicators and supports two-color display.

• The base adopts a square geometric design, cast from integrated zinc alloy, and can be used with nameplate to display name. Provide 1 way 3.5mm headphone jack with adjustable volume. Provide 2-way terminal interface, support hand-in-hand, star, hybrid three kinds of connection mode, support line hot-plug. The output port has an anti-loosening design and supports bottom line output, with the option for hidden or non-hidden installation.

• Support independent sensitivity adjustment, allowing real-time adjustment of pickup distance based on the speaker's posture and ambient noise levels.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• Any delegate terminal can be set as the vice-chairman terminal. There is no limit to the number of chairman/vice-chairman terminals in the system. The chairman has all the functions of the delegate, but also has the following functions:

• Support unrestricted microphone activation, not limited by the number of activations or software control restrictions.

• Has a speech interruption key to deactivate the microphone of a delegate terminal currently speaking.

• With speech control function, it can control the microphone on and off through the touch screen (specified models).

• With monitoring function. Built-in speaker with adjustable volume. When the microphone is turned on, the speaker of this machine is automatically turned off to prevent the sound from whistling back. Built-in NFC module, support with NFC devices, NFC card for close range wireless communication.

• With simultaneous interpretation channel selector, the audio frequency response of the simultaneous interpretation channel can be up to 20Hz～20kHz, which can realize the function of 32-channel simultaneous interpretation (including the floor channel).

• Supports quick voting without the need for pre-entering topics and voting options. Voting can be initiated instantly. When used with software, it can provide various registration and voting functions.

• The terminal offers a service call function, allowing users to tap on icons such as tea, paper, pen, or help on the touch screen to request services from the system backend  (it needs to be used with the call service software).

Functions of Flush-Mounting Backup Conference System

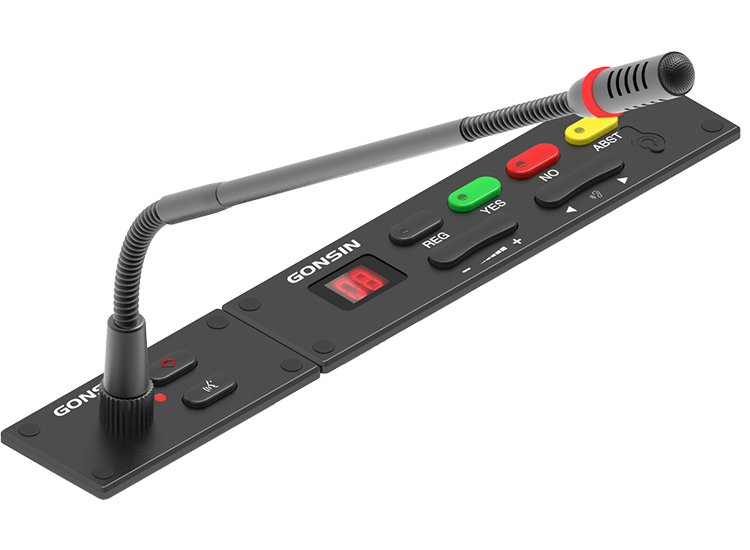

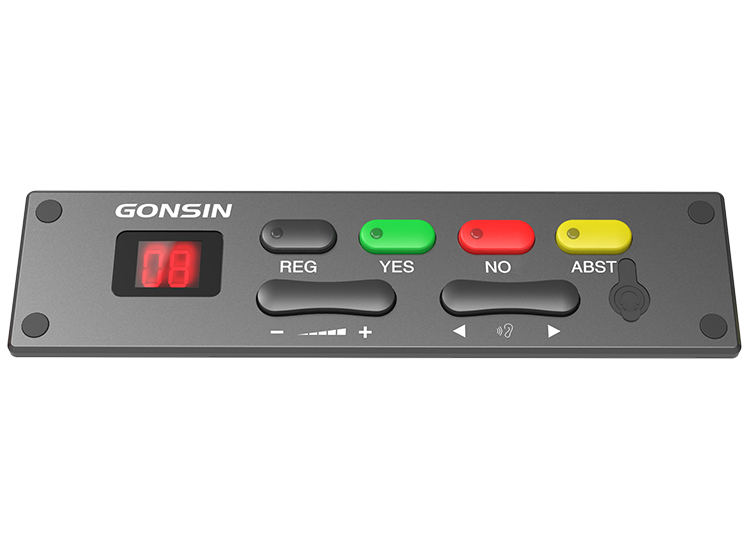

Functions of Discussion Module DCS-Q2057

• In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology

• The exquisite full-metal panel design is suitable for flush mounting installation

• Three-color LED to indicate the unit status (on or off)

• Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.

• With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor.

• Congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.

• It supports daisy-chain connection, star connection and mixed connection. The conference mic system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system work.

• Automatic restoration function: supports hot plug.

• Supports 48KHz audio sample freq, acoustic frequency response can up to 20Hz~20KHz.

• AF sensitivity of each terminal (7 levels) can be adjusted separately or uniformly.

• Built-in high-performance DSP digital audio processor, helps remove the useless low-frequency and avoid low-frequency acoustical shock, which better improve the sharpness of sound.

• Standard electret cardioid pickup pattern microphone with lamp bezel (On or Off), rich timbre.Several kinds of soft gooseneck microphone stems for various conferences (standard: 410mm, optional: 310mm/510mm)

• Pluggable gooseneck microphone stem, convenient for equipment maintenance.

• Highly resistant to mobile phone interference

• Loud speaker: VOX, Auto, FIFO, Operator.

• VOX function: in VOX mode, the unit will be activated for user speaks; VOX sensitivity can be adjust by the server ( high, middle, low); microphone time-out is adjustable ( 20-250 seconds).

• 1-4 delegate unit can be used except the chairman unit

• Optional HD video camera tracking matrix ,switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view

• 8*1+3 video matrix is built in the server, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view.

• The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.

• Attendance registration function: key to register, supplementary register or revocatory register.

• Be able to connect with simultaneous interpretation terminal/voting terminal/voting and interpretation terminal, to extend the conference function.

• Appoint any terminal as the chairman or delegate terminal. The chairman terminal has functions below, besides all functions of delegate terminal:

• Chairman terminal can be activated at any time without presetting mic limit

• Chairman priority button to override all active delegate terminals.

Functions of Delegate Terminal DCS-2057D

• In compliance with IEC 60914 international standard

• Support to connect to other 20000S products, together composing multiple big systems with different terminals

• Hand-held design with full-metal microphone suits for flush mounting installation

• With spring line, convenient for extension and storage

• Transparent silicone button with status indicator, responds accurately and has long service life

• Full digital audio technology provides CD-level sound track quality

• Equipment like congress terminal, power HUB and conference server is connected by cable, convenient for construction

• Support daisy-chain connection, star connection and mixed connection; break down of one extension won’t influence other extensions, and the mal-function of one attachment among the extensions won't influence the system work, securing stable work of the system

• Auto restoration function: support hot plug

• Support 48KHz audio sampling frequency; acoustic frequency response up to 20Hz~20KHz

• Support separated adjustment of audio and sensitivity(7 levels) of the terminal; adjust the sound effect based on the on-site speaking situation

• Build-in high performance DSP digital audio processor can eliminate invalid low-frequency components, improving the sound quality

• Highly resistant to mobile phone interference

• With one and only serial-number, the congress system supports to automatically or manually assign ID to the corresponding equipment.

• Speaking mode: VOX, Auto, FIFO, Operator

• In VOX mode, the microphone will be activated as users speak. VOX sensitivity (high/middle/low) and mic time-out(20-250 seconds)is adjustable.

• 5 delegate units can be activated at the same time(one chairman unit and 4 delegate units)

• Attendance registration: key to register, supplementary register or revocatory register

• Optional HD video camera tracking matrix, switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view

• 8*1+3 video matrix is built in the server, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view

• Be able to connect with interpretation/voting/interpretation & voting terminal, carrying out extended conference function

• Random delegate unit can be set as vice-chairman terminal; no limit on the number of vice-chairman terminal




Besides functions of delegate unit, the vice-chairman unit has functions as follows:

• Vice-chairman unit can be activated at any time without presetting MIC limit

Functions of 32-Channel Terminal DCS-Q2057SI

• In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology

• The exquisite full-metal panel design is suitable for flush mounting installation

• Two digit LED display Channel number and volume.

• Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.

• With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor.

• Congress terminal, power HUB and congress server are all connected by cable. Flexible cablingreduces project workload, makes large-scale construction easier.

• It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won't influence the other extensions, and the malfunction of one attachment among the extensions won't influence the system work.

• Automatic restoration function: supports hot plug

• Highly resistant to mobile phone interference

• The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.

• Be able to connect with basic discussion module/voting terminal, to extend the conference function.

• Support 32 (1+31) channels simultaneous interpretation

• Built-in language channel selector and adjustable volume(9 levels), press button to change channel and adjust volume.

• Acoustic frequency response can up to 20Hz~20KHz.

Functions of Dual 32-Channel Terminal DCS-Q2057DI

• In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology

• The exquisite full-metal panel design is suitable for flush mounting installation

• Two digit LED display Channel number and volume.

• Two independent LED to indicate the unit status (on or off)

• Support two delegates use interpretation functions independently, volume and interpretation channel could be adjusted respectively.

• Three-color LED to indicate the unit status (on or off)

• Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.

• With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor.

• Congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.

• It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won't influence the system work.

• Automatic restoration function: supports hot plug

• Highly resistant to mobile phone interference

• The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.

• Be able to connect with basic discussion module/voting terminal, to extend the conference function.

• Support 32 (1+31) channels simultaneous interpretation

• Built-in language channel selector and adjustable volume(9 levels), press button to change channel and adjust volume.

• Acoustic frequency response can up to 20Hz~20KHz

Functions of Voting Terminal DCS-Q2057V

• In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology

• The exquisite full-metal panel design is suitable for flush mounting installation

• Three-color LED to indicate the unit status (on or off)

• Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.

• Congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.

• It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system work.

• Automatic restoration function: supports hot plug.

• The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.

• Attendance registration function: key to register, supplementary register or revocatory register.

• Voting: delegate can vote for Yes, No, Abstain. Vote counting and result display are enabled automatically by PC

  - Single-choice and multiple-choice voting

  - First key-press and final key-press voting

• Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election’

• Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", "Abstain", or the customized evaluation way by software.

• Utilize data encryption and anti-restoration technique to ensure information security.

• Customized voting options and voting methods, support customized language mode or display screen

• Be able to connect with basic discussion module/interpretation terminal, to extend the conference function.

Functions of Voting and Interpretation Terminal DCS-Q2057VI

• In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology

• The exquisite full-metal panel design is suitable for flush mounting installation

• Two digit LED display Channel number and volume.

• Two independent LED to indicate the unit status (on or off)

• Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.

• With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor.

• Congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.

• It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system work.

• Automatic restoration function: supports hot plug.

• Highly resistant to mobile phone interference

• The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.

• Attendance registration function: key to register, supplementary register or revocatory register.

• Voting: delegate can vote for Yes, No, Abstain. Vote counting and result display are enabled automatically by PC

  - Single-choice and multiple-choice voting

  - First key-press and final key-press voting

• Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election’

• Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", "Abstain", or the customized evaluation way by software.

• Utilize data encryption and anti-restoration technique to ensure information security.

• Customized voting options and voting methods, support customized language mode or display screen

• Support 32 (1+31) channels simultaneous interpretation

• Built-in language channel selector and adjustable volume (9 levels), press button to change channel and adjust volume.

• Acoustic frequency response can up to 20Hz~20KHz.

• Be able to connect with basic discussion module, to extend the conference function.

Functions of Connector DCS-CON2057

• In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology

• Cooperate with basic discussion module, one connector could connect one discussion module, supply power for the discussion module

• Realize the communication between basic discussion module and the server

• Connector, basic discussion module, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.

• It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system work.

• Automatic restoration function: supports hot plug.

• When there is only basic discussion module, it requires the connectors; when the basic discussion, module is extended to other terminal, it do not require the connector.

Functions of Speaker Module SPK-20258

• With monitor function. Built-in speaker, 1-way 3.5mm headphone jack, physical buttons, volume adjustable.

• When the microphone is turned on, the speaker of this unit is automatically turned off to prevent the sound from whistling back.

• Need to connect the connector or terminal for use.

Functions of Simultaneous Interpretation Module TC-2058

• Adopt all-metal panel design and support panel size customization. Small size to meet various embedded installation scenarios. With 1 channel 3.5mm headphone jack, physical buttons, simultaneous channel and volume adjustable.

• With simultaneous channel selector, the audio frequency response of the simultaneous channel can reach 20Hz~20kHz. 32 channels of simultaneous interpretation can be realized (including the floor channel).

• Need to connect the connector or terminal for use

Functions of Connector DCS-CON2058

• Adopt a black full-metal shell design with mounting holes, supporting hidden installation.

• Provide 1 way 5V powered discussion interface to connect discussion module. Provide 2-way terminal interface, support ring hand-held, star and hybrid three types of connection, support line hot-plug.

• Provide 1 way expansion interface to connect with simultaneous interpretation module, voting module, NFC module and so on.

• Provide 1 way 3.5mm speaker jack to connect speaker module.

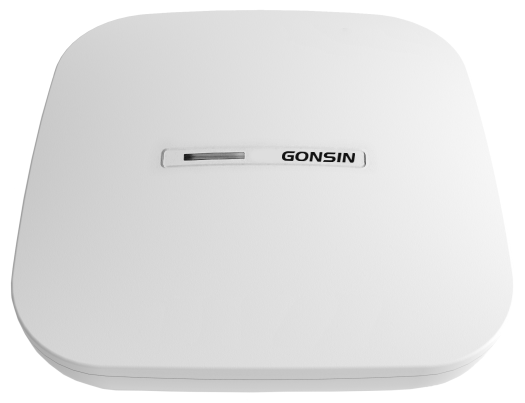

Functions of Wireless AP WAP-10D

Wireless AP

(Wi-Fi,Support PoE)

• Adopt WiFi wireless communication technology, compliant with IEEE 802.11b/g/n, IEEE 802.11ac/a/n network standards, built-in matrix smart antenna, wireless transmission rate up to 1167Mbps.

• MU-MIMO technology based on 802.11ac Wave2 specification, supports 2.4GHz/5.2GHz/5.8GHz tri-band communication. Built-in wireless frequency sweeping software to detect the wireless environment, frequency hopping and spreading in real-time wireless audio transmission system, and selecting clean frequency to work.

• Support SSID wireless network settings, support 128 wireless AP connection management, support multi-AP wireless coverage, support multiple systems in the same environment at the same time.

• Adopt 128-bit AES encryption technology, support WEP/WPA/WPA2 wireless security technology, ensure the privacy of the meeting, avoid eavesdropping and malicious interference.

• Provide 1 network interface to support PoE power supply, support conference servers or switches for PoE power supply, reducing the need for additional wiring.

• Support three installation methods: ceiling-mounted, wall-mounted, and desktop placement. adapting to different types of venues.

Functions of Server GONSIN10000N/GONSIN10000NA

Server

(OLED,Discussion,Voting,Interpretation,4*RJ45-Terminal,Wireless MIC Compatible,Web Management,USB Recording,Matrix Camera Tracking,FHSS Interpretation,Dual-server Hot Backup,Group Output)

Server

(OLED,Discussion,Voting,Interpretation,4*RJ45-Terminal,Wireless MIC Compatible,Web Management,USB Recording,Matrix Camera Tracking,FHSS Interpretation,Dual-server Hot Backup,Group Output,AES67)

• Designed with black tempered glass panel with navigational knob, OLED screen displays system status, number of speakers, speaking modes and other information, providing multi-language menu.

• Support clock and date synchronized display. Support automatic/manual assignment of terminal ID. Support remote diagnosis and remote upgrade.

• Adopts full-digital audio technology, supports 48KHz audio sampling frequency, audio frequency response up to 20Hz～20kHz, supports automatic mixing, volume adjustment, equalization adjustment, sensitivity adjustment and other functions.

• Based on LINUX operating system platform development, support wired conference terminal and wireless conference terminal access to the same conference server. The default maximum number of simultaneous openings is 5 (wired)/4 (wireless). Support multi-chairman application and unlimited number of chairmen/vice-chairmen.

• Provide 2 network interfaces with PoE power supply capability. Support connection to devices such as wireless access points, switches, routers, and computers. Support SSID wireless network management, managing 128 wireless access points and 650 wireless terminals. Support one-click shutdown function to uniformly power off all wireless terminal devices.

• Provide a terminal interface with 4 channels and 24V power supply capability, support three connection modes: hand-in-hand, star and hybrid. Support dual-chain connection (specified model), which can provide two sets of mutually independent network communication system, and any one equipment failure or line failure of the whole system will not affect the work of the system.

• Provide 4-channel packet audio output interface. The system has a terminal grouping function, which can be used as a large system or split into up to 4 independent systems to meet the application requirements of space merging/splitting.

• Support external audio signal input, which can be connected to alarm audio, broadcast audio or third-party conference system, simultaneous interpretation system, public address, etc.

• Provide 1 channel USB interface on the front panel. Insert U disk (FAT32 format) to support manual/automatic audio recording, and display the recording status. When used with acquisition card and software, it can realize the function of recording and video.

• Provide connection interface for simultaneous interpretation equipment, which can be connected to the interpreter terminal and wireless simultaneous interpretation access point. The audio frequency response of the simultaneous interpretation channel can reach 20Hz～20KHz, and it can realize 6-channel (wireless conference terminal)/32-channel (wired conference terminal)/16-channel (wireless simultaneous interpretation receiver) simultaneous interpretation function (including original sound channel).

• Provide 1 channel AES67 network audio interface (specified model). The system complies with AES67 network audio standard, is compatible with Dante protocol, and supports channel management through Dante Controller software.

• Support multiple discussion modes: FIFO, Override, Wait, Voice, Apply, PTT, Timed (requires software integration)

• FIFO: When the number of active microphones exceeds the system limit, pressing the microphone button will activate the microphone while the earliest active microphone is automatically turned off.

• Override: When the number of active microphones exceeds the system limit, pressing the microphone button will attempt to activate the microphone, but activation will only occur after other microphones are turned off.

• Wait: When the number of active microphones exceeds the system limit, pressing the microphone button will place the microphone in a waiting queue. Once an active microphone is turned off, the waiting microphone will automatically activate.

• Voice: The microphone will automatically activate when it detects sound and will turn off when no sound is detected for a preset period. Sensitivity and auto-off time can be configured. Manual activation and deactivation by pressing the microphone button are also supported.

• PTT: The microphone remains active only while the microphone button is being pressed and will deactivate once the button is released.

• Apply: When the delegate microphone button is pressed, the microphone enters a request status. The microphone will only activate after approval from the Chairman. Chairman and Vice Chairman units can speak directly without approval.

• Timed (requires software integration): When the microphone is activated, it enters a countdown timer status. Once the countdown reaches zero, the microphone will automatically turn off. The speaking time limit can be configured via software.

• The congress server has a dual-server hot backup function. One conference server can be set to backup mode, when the main server fails, the backup server automatically takes over the work to ensure uninterrupted operation of the system.

• Management software with dual-computer hot backup function. One computer can be set as backup mode, when the main operating computer fails, the backup computer will automatically take over the work to ensure uninterrupted operation of the system.

• Built-in 8 in 4 out video matrix, support the connection of SD cameras. Support external HD matrix, switcher, HD camera, support multi-camera cascade. Support automatic camera tracking function, support panoramic view.

• With the upper computer management software (additional purchase required), it can realize the functions of meeting registration, meeting voting, discussion control and so on.

• With chairman screen tablet (additional purchase required), it can realize meeting registration, meeting voting, discussion control and other functions, to meet the application needs of portable control.

• With the call service management software/tablet (additional purchase required), it can check the service applications submitted by terminal devices and carry out service processing (it needs to be used with terminals with call service function).

• With Automatic Speech Recognition System (need to purchase separately), it can realize system audio role separation, voice transcription, voice translation, subtitle display, minutes output and other functions.

• With voice control system (additional purchase required), it can realize voice control function. Realize equipment control, task execution and other operations through voice speech. Support multiple scene quick call. Support wake-up word and command word customization.

• Support Web page management and client software management. Support access to the central control system, visual media interactive system, intelligent conference management platform, which can realize remote control, status monitoring, fault reminder and other functions.

• The power supply is designed with 100V~240V wide voltage input and built-in linear voltage regulator circuit for over-voltage protection. Built-in power management embedded software can monitor the voltage status of the equipment, reduce the equipment failure caused by voltage fluctuation, and realize all-weather protection.

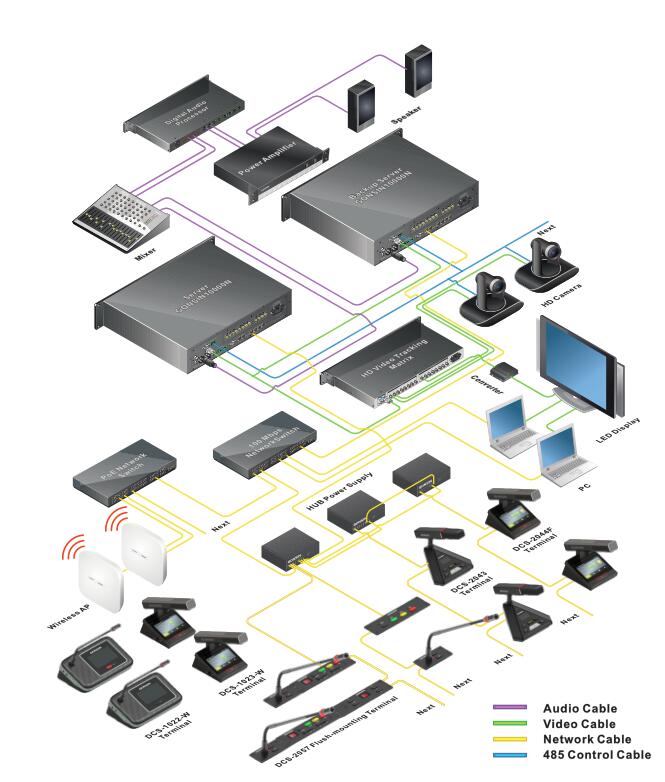

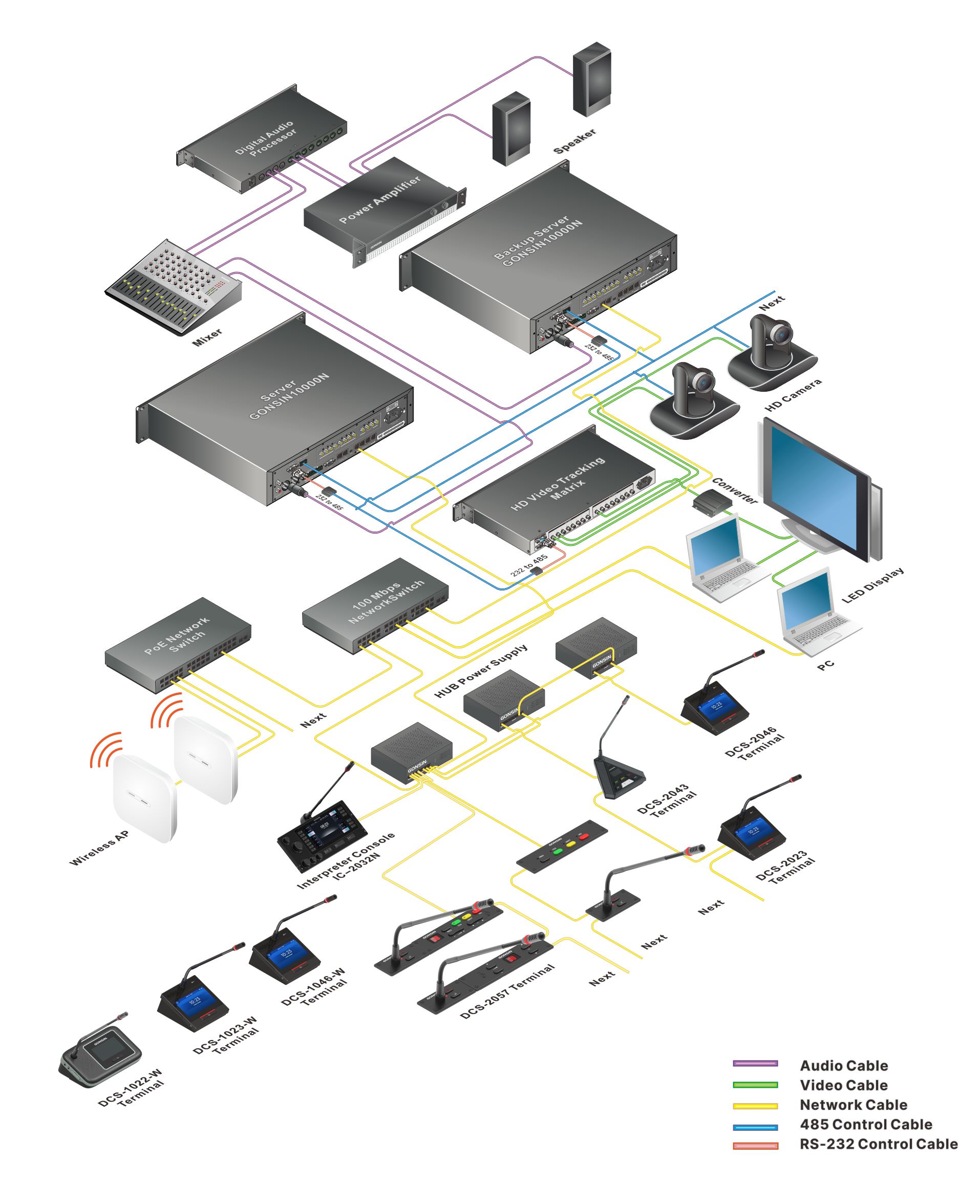

System Configuration of 10000N Series Seamless Compatible Wired and Wireless Conference System
