4-way DVI Seamless Input/Output Card

Central Control System
Central Control System
Get A Quote
Features
Technical Parameters

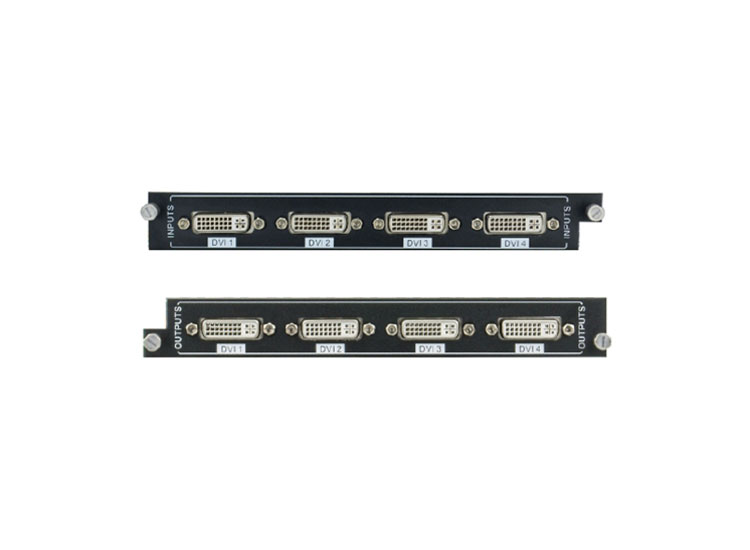

Features of 4-way DVI Seamless Input / Output Card

GX-DVI4I-D

  • 4 channels for seamless DVI input

  • Supports resolution selection, and it is up to 1920x1080P@60Hz

  • Automatically recognize DVI, HDMI, VGA, YPbPr and CVBS signal format

  • Supports video upscaling, converting output source to 1080P or 1920x1200

  • Input signal card with character overlay function


GX-DVI4O-D

  • 4 channels for seamless DVI output

  • Supports resolution selection, and it is up to 1920x1080P@60Hz

  • Automatically recognize DVI, HDMI, VGA, YPbPr and CVBS signal format

  • Supports video upscaling, converting output source to 1080P or 1920x1200

Technical Parameters of 4-way DVI Seamless Input / Output Card

Product4-way DVI seamless input card4-way DVI seamless output card
ModelGX-DVI4I-DGX-DVI4O-D
Type of signal4 channels for DVI signal, compatible with HDMI, VGA, CVBS and YPbPr
ConnectorDVI-I female
Input LevelT.M.D.S 2.9V~3.3V
Input Impedance75 Ohm
Transmission Distance≤10m(select high quality wire)
Bandwidth340MHz(10.2Gbit/s)
Max Time-delay5nS(±1nS)
Date type8bit
Video Signal FormatEmbedded audio support PCM, Dobly Digital, DTS, DTS-HD format, external audio support PCM format
Audio sampling rate32K, 44.1K, 48K, 88.2K, 96K, 176.4K,192K
EDID and DDCSupports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards
HDCPCompliant with HDCP using DVI and HDMI 1.3 standards
General
Gain0dB
Crosstalk<-50dB@5MHz
Switching Rate200ns (Maximum)
Power consumption10W6W
Working temperature0°C~+50°C
Relative humidity10%~90%
Note: When connecting HDMI, VGA, YPbPr and CVBS signals, special connection lines are needed.
